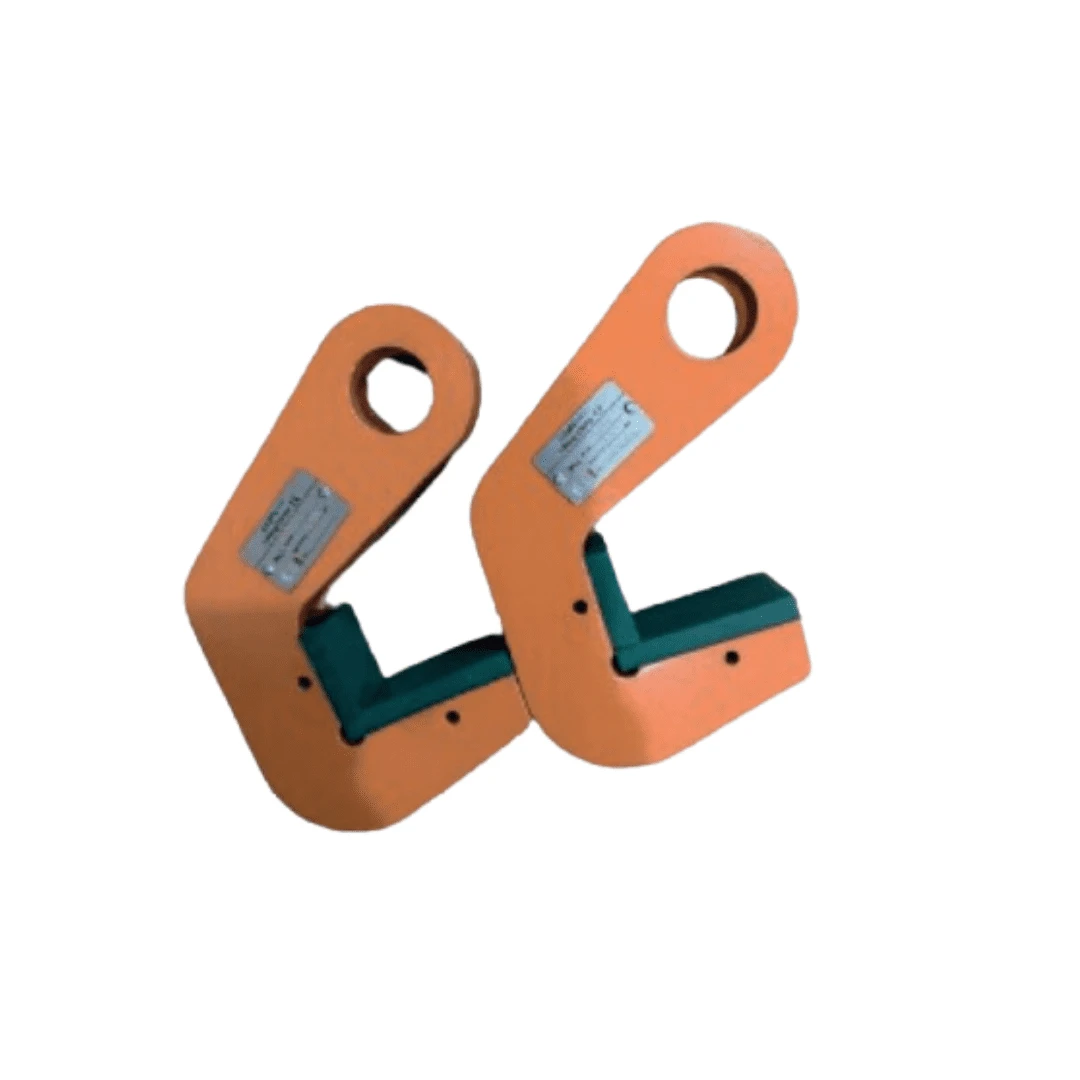

Pipe Lifting Clamp 12 TON
Overview
As can be understood, it is used for pipe lifting respectively; therefore, the Pipe Lifting Clamp is an attachment that is indispensable in a pipe-related working industry. This clamp gives a secure and tight hold of various pipe diameter and cross sections of steel pipes and other types of pipes making it very applicable in the construction industry, production lines and when carrying out repairs.
Use of the Product
The Pipe Lifting Clamp is designed for use in pipe repositioning and can take pipes with ease and safely through the clamp due to its design. The harness is widely used in constructions, oil and gaz, manufacture and shipbuilding industries, where pipe management is a significant process and perspective, fast and reliable is a main value. Buy Pipe Lifting Clamp
Applications
Construction Sites: It helps in planning and installation of pipes for their infrastructure to carry out their utility purposes.
Oil and Gas Industry: Is useful in controlling and handling of pipes in drilling activities besides acting as an essential input in pipeline construction business.
Manufacturing Plants: It was formerly used in pipe conveyor to reduce the size of pipes in production centers.
Shipyards: This implies that it can be used when positioning or lifting pipes during the construction of ships or while maintaining the same.
Technical Specifications
| Feature | Description |
|---|---|
| Model | PLC-100 |
| Rated Lifting Capacity | 2000 kg |
| Max. Pipe Diameter | 500 mm |
| Safety Factor | 4:1 |
| Weight | 30 kg |
| Dimensions (LxWxH) | 350 x 200 x 250 mm |
| Material | High-strength steel |
| Surface Treatment | Anti-corrosion coating |
| Operating Temperature Range | -20°C to 100°C |
| Certifications | ISO 9001, CE |
Benefits
Pipe Lifting Clamp
Efficiency: I bet the same will save much social carnage involved in lifting by robots and the likes.
Safety: This is because safety factor is very high which make handling of pipes easier withoutetto any dangers to operations.
Versatility: It can be effectively used in various applications as piping material and in various systems pipe.
Durability: Stronger Belts, much more anti corrosive coated to make it last longer than the Ordinary plastic timing belts.
For matters concerning the conditions of use, safety instructions, and protection measures, kindly consult the Pipe Lifting Clamp User Guide and the attached documents: the technical sheets. It is your responsibility to contact us for these documents.
• Durable Paint Coating: A protective paint coating safeguards the hooks from harsh environments, ensuring lasting performance.
• Compact & High-Capacity: Their space-saving design seamlessly integrates into tight workspaces while delivering an impressive lifting capacity for diverse pipe sizes.
• Adjustable Lifting Capacity: Choose between single or double pairs based on your specific pipe weight needs, optimizing lifting efficiency & safety.
Buy Pipe Lifting Clamp
| Model | Capacity/ | Opening | Dimension | Net Weight | Shackle | |||||
| Pair (kg) | Size (R=mm) | A | B | C | D | E | T | (kg) | (G2130) | |
| LEPLCI.5 | 1500 | 40 | 122 | 30 | 195 | 70 | 39 | 025 | 2.23 | 7/8″(6.5T) |
| LEPLC3 | 3000 | 40 | 122 | 30 | 195 | 70 | 39 | 025 | 2.58 | l”(8.5T) |
| LEPLC4 | 4000 | 50 | 122 | 30 | 215 | 70 | 39 | 028 | 2.90 | l”(8.5T) |
| LEPLC6 | 6000 | 50 | 122 | 30 | 215 | 70 | 39 | 028 | 3.50 | 1-1/8″(9.5T) |
| LEPLC8 | 8000 | 70 | 126 | 30 | 240 | 70 | 39 | 028 | 3.80 | 1-1/8″(9.5T) |
| LEPLC12 | 12000 | 70 | 160 | 30 | 260 | 90 | 45 | 035 | 6.40 | 1-1/4″(12T) |
| LEPLC16 | 16000 | 70 | 168 | 30 | 272 | 90 | 50 | 037 | 9.20 | 1-1/2″(17T) |
| LEPLC18 | 18000 | 70 | 183 | 30 | 292 | 90 | 50 | 037 | 9.40 | 1-3/4″(25T) |
| LEPLC20 | 20000 | 70 | 220 | 30 | 333 | 90 | 50 | 045 | 19 | 1-3/4″(25T) |
