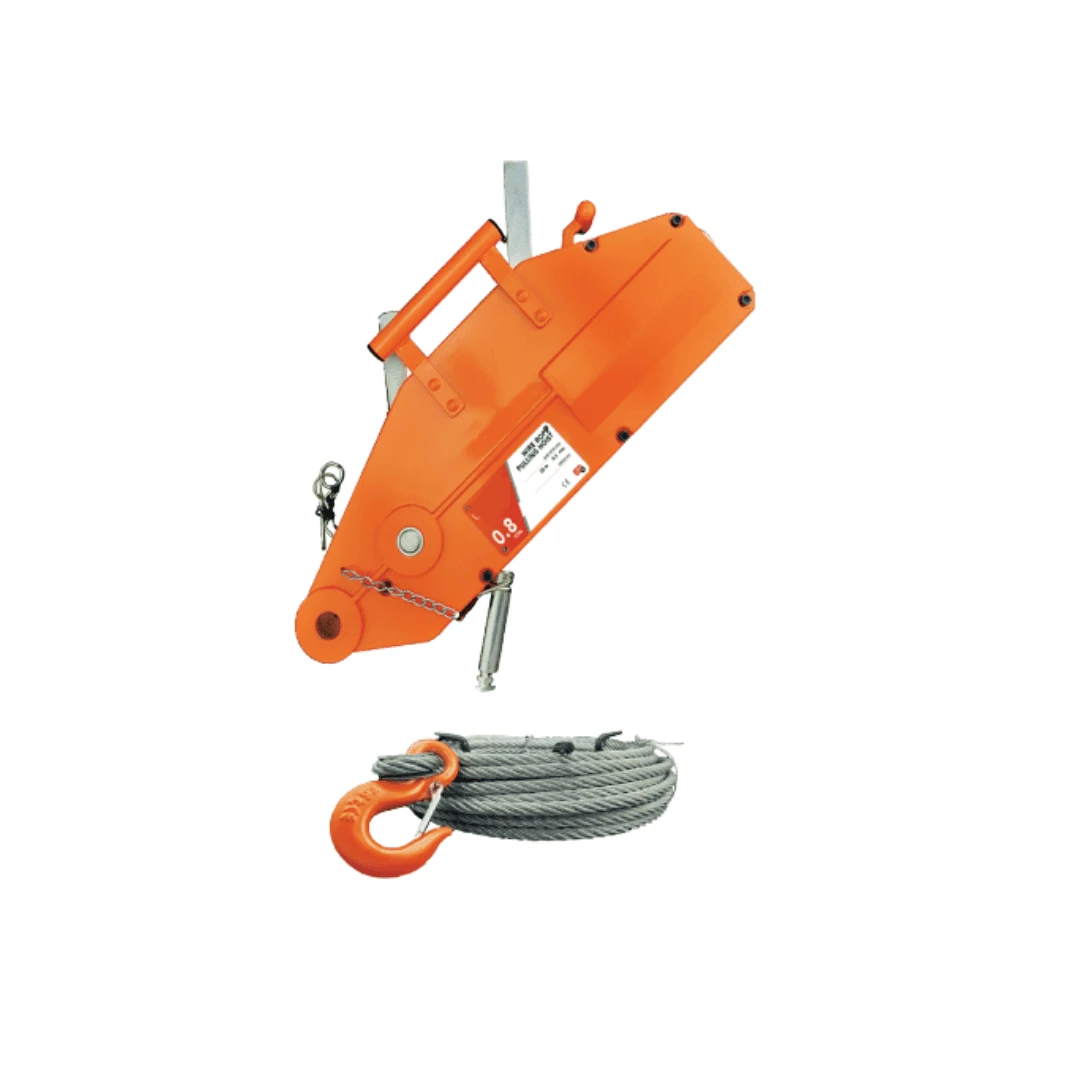

TIRFOR WINCH 5.4T X 20M
It has light weight and firmed structure, and widely used in different regions, easily convenient maintanence. The most special feature is the product can suit for outside and bad environment. The raw material for the trifor is aluminum alloy, has enough strength, light weight and easily carried.
Features
• These jacks are commonly seen in the automotive industry for lifting vehicles another loads.
• Double pawl brake system-quick braking, safe and reliable
• Low gearing tolerance-smooth transmission, free of jerks
• High efficiency and minimum turning force less than 25kgs is required to lift full load of all rated capacity
• Constructed in a sturdy steel framework
• Safety crank with handle TIRFOR WINCH 5.4T X 20M
• All construction components are as per standard
• The ableforge steel hack is designed & developed for heavy industrial lifting applications, strictly in accordance with the latest safety standard DIN 7355
| Units | LE0.8 | LE1.6 | LE3.2 | LE5.4 | |
| Lifting Capacity | Tons | 0.8 | 1.6 | 3.2 | 5.4 |
| Pulling Capacity | Tons | 1.2 | 2.4 | 4.8 | 8.1 |
| Rated Forward Travel | MM | 52 | 55 | 25 | 35 |
| Efficient length of forward Handle | MM | 825 | 1200 | 1200 | 800-1200 |
| Drive Step | 1 | 1 | 2 | 2 | |
| Rope Diameter | MM | 8 | 11 | 16 | 20 |
| Standard Length of Rope | MM | 20 | 20 | 20 | 20 |
| Net Weight | KG | 16 | 24 | 48 | 90 |
| Rated Forward Hand Power | N | 284 | 412 | 441 | 750 |
| Max. Overall Size | MM | 4286*64*235 | 545*97*286 | 660*116*350 | 940*380*180 |
Buy Tirfor Winch in Bahrain, Kuwait, Oman, Qatar, Saudi Arabia, and the United Arab Emirates
